Press Brake, WC67K Series

Press Brake, WC67K Series
Inquiry
Features
  • This press brake’s working cycle is divided into a fast approach, forming, and fast return phases, all enabled by the use of a second oil cylinder. The pressurized fluid will either extend or retract the cylinder to maintain the balance.
  • The 3-cylinder structure improves the press brake’s bending precision.
  • This press brake supports hydraulic synchronous control and an CNC programmable logic controller to ensure uniform operation and precise bending effects. An accurate positioning is supported through an enabled X and Y axis through an NC CNC system programming control to calculate the bending angle.
Technical Parameters
Model Nominal force (KN) Table Length (mm) Distance between frames (mm) Throat depth (mm) Ram stroke (mm/min"1) Max. open height (mm ) Motor Dimensions LxWxH (mm )
Power
(KW)
40T/2200 400 2200 1600 260 100 320 4 2200x1200x1910
40T/2500 400 2500 1900 260 100 320 4 2500x1200x1910
50T/2500 500 2500 1900 260 100 330 5.5 2500x1260x2000
63T/2500 630 2500 1900 280 120 330 5.5 2500x1300x2210
63T/3200 630 3200 2600 280 120 330 5.5 3200x1300x2210
80T/3200 800 3200 2600 300 120 360 7.5 3200x1400x2300
80T/4000 800 4000 3100 300 120 360 7.5 4000x1400x2300
100T/2500 1000 2500 1900 320 120 380 7.5 2500x1500x2400
100T/3200 1000 3200 2600 320 120 380 7.5 3200x1500x2400
100T/4000 1000 4000 3100 320 120 380 7.5 4000x1500x2400
125T/3200 1250 3200 2600 320 120 380 7.5 3200x1550x2500
125T/4000 1250 4000 3100 320 120 380 7.5 4000x1550x2500
160T/3200 1600 3200 2550 340 200 460 11 3200x1650x2700
160T/4000 1600 4000 3050 340 200 460 11 4000x1650x2700
160T/5000 1600 5000 3950 340 200 460 11 5000x1750x3100
160T/6000 1600 6000 4950 340 200 460 11 6000x1800x3200
200T/3200 2000 3200 2600 360 200 460 15 3200x1950x2800
200T/4000 2000 4000 3100 360 200 460 15 4000x1950x2800
200T/5000 2000 5000 4000 360 200 460 15 5000x1950x3000
200T/6000 2000 6000 5000 360 200 460 15 6000x2000x3200
250T/3200 2500 3200 2600 400 250 460 18.5 3200x2000x3200
250T/4000 2500 4000 3100 400 250 460 18.5 4000x2000x3400
250T/5000 2500 5000 4000 400 250 460 18.5 5000x2000x3400
250T/6000 2500 6000 5000 400 250 460 18.5 6000x2000x3400
300T/3200 3000 3200 2600 400 250 520 22 3200 x 2000 x 3400
300T/4000 3000 4000 3100 400 250 520 22 4000x2000x3450
300T/5000 3000 5000 4000 400 250 520 22 5000x2000x3450
300T/6000 3000 6000 5000 400 250 520 22 6000x2000x3450
350T/4000 3500 4000 3100 400 250 520 22 4000x2080x3450
350T/5000 3500 5000 4000 400 250 520 22 5000x2080x3450
350T/6000 3500 6000 5000 400 250 520 22 6000x2080x3450
400T/4000 4000 4000 3100 400 300 560 30 4000x2180x3500
400T/5000 4000 5000 4000 400 300 560 30 5000x2180x3500
400T/6000 4000 6000 5000 400 300 560 30 6000x2180x3800
500T/4000 5000 4000 3100 400 300 600 37 4000x2250x3700
500T/5000 5000 5000 4000 400 300 600 37 5000x2250x3700
500T/6000 5000 6000 5000 400 300 600 37 6000x2300x3800
600T/4000 6000 4000 3100 400 300 600 45 4000x2400x3700
600T/5000 6000 5000 4000 400 300 600 45 5000x2400x3700
600T/6000 6000 6000 5000 400 300 600 45 6000 x 2400 x 3800

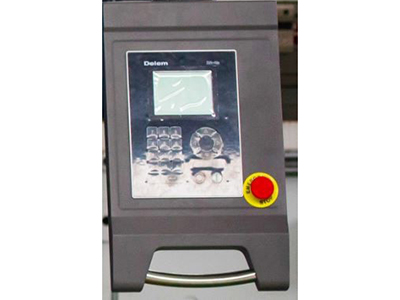

DA-41S Control System
  • Servo control technology
  • 4.7 " high-brightness LCD screen, multi-language interface
  • Parameter setting for press brake die, programming of the bending angle
  • 100 programs stored, 25 steps per program
  • Processing quantity counting and power-off memory functions
  • mm/inch conversion
DA-41S Control System
Standard Configurations

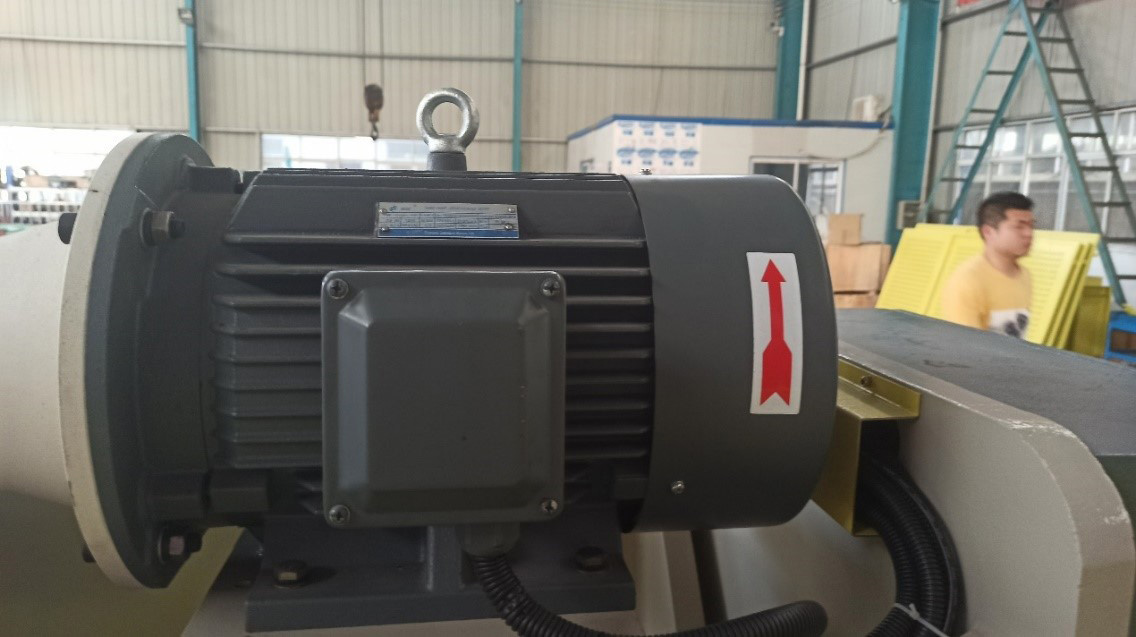

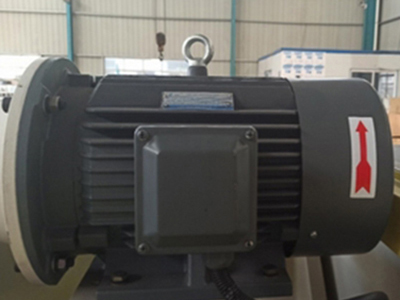

  • Main motor from Siemens
    Main motor from Siemens

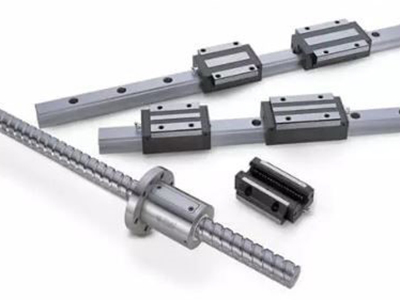

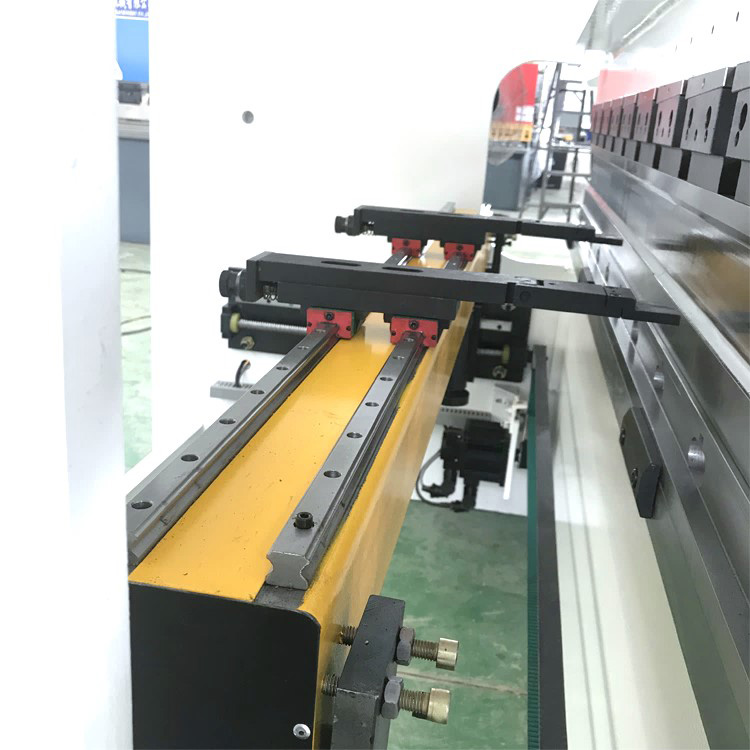

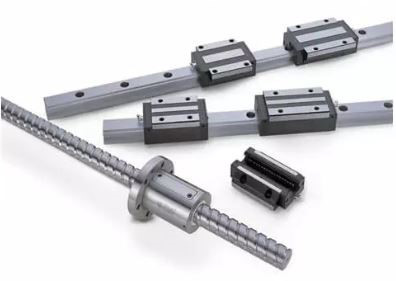

  • Ball screw and linear rail from Taiwan HIWIN
    Ball screw and linear rail from Taiwan HIWIN

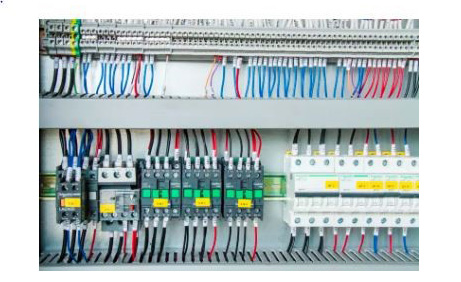

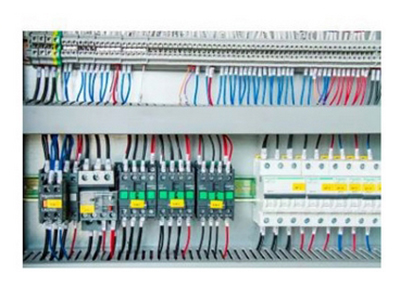

  • Electrical system from French SCHNEIDER
    Electrical system from French SCHNEIDER

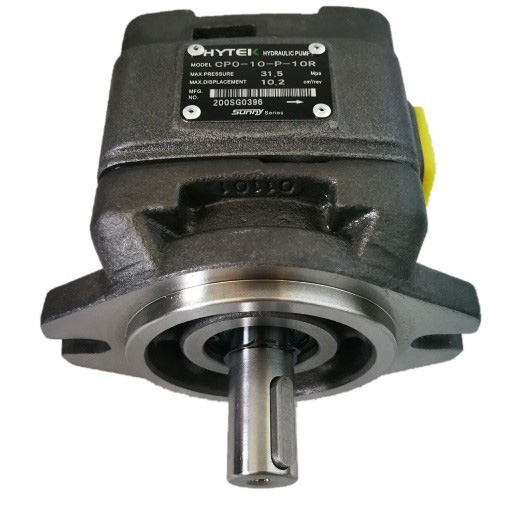

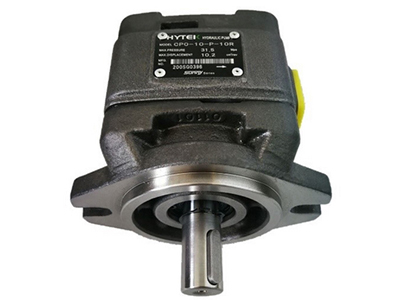

  • Oil pump from Sunny
    Oil pump from Sunny

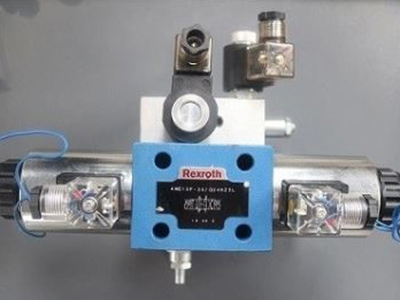

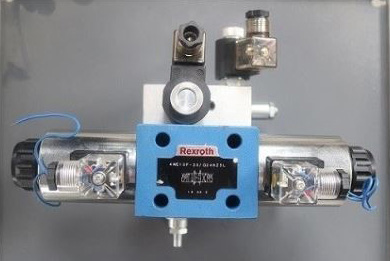

  • Manifold valve from REXROTH
    Manifold valve from REXROTH

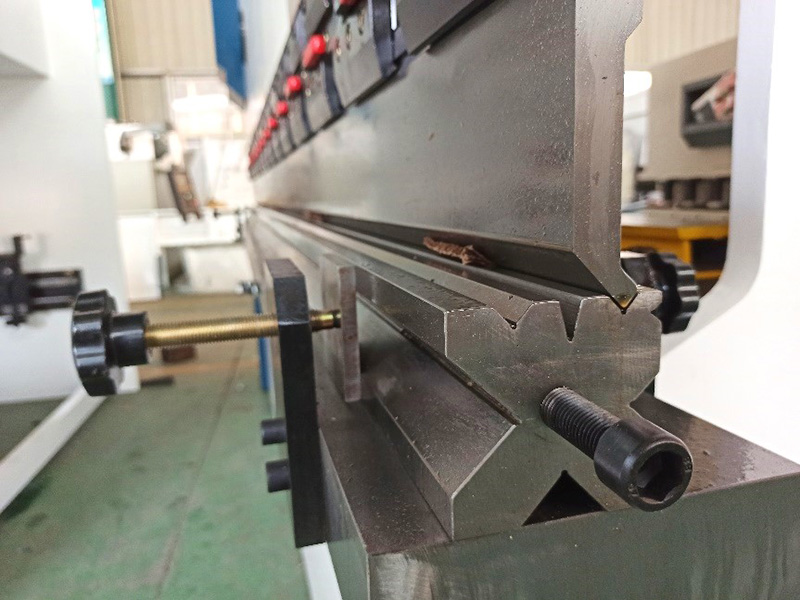

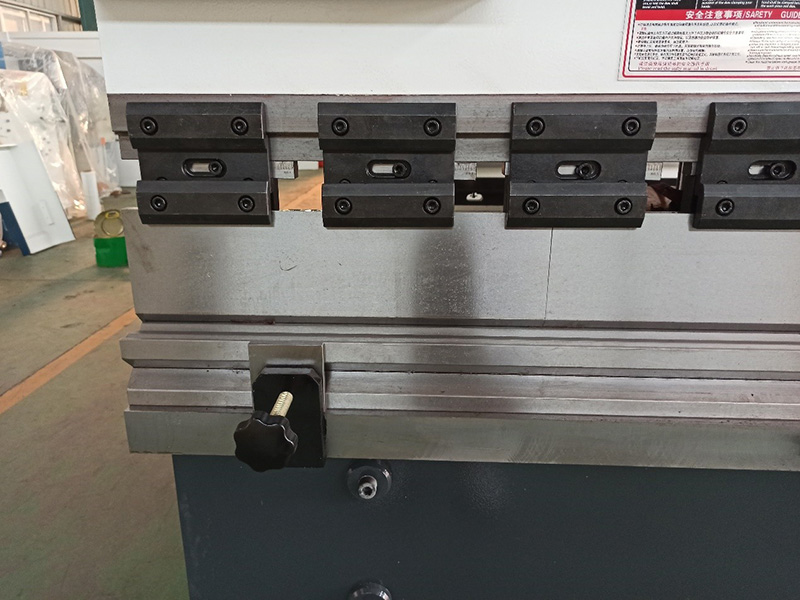

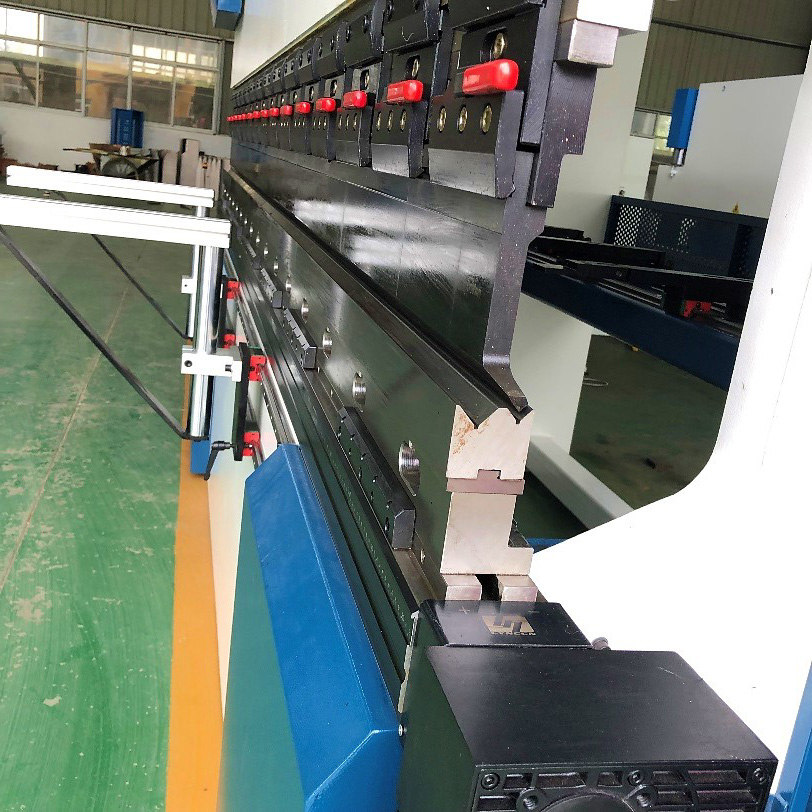

  • Standard dies
    Standard dies

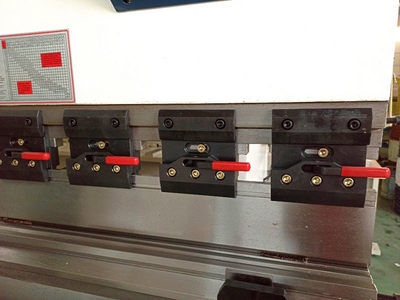

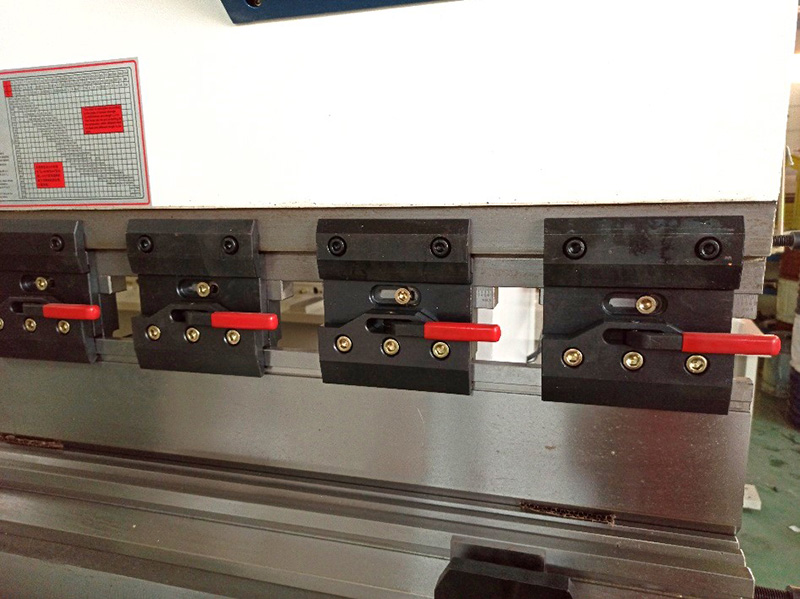

  • Clamping system
    Clamping system

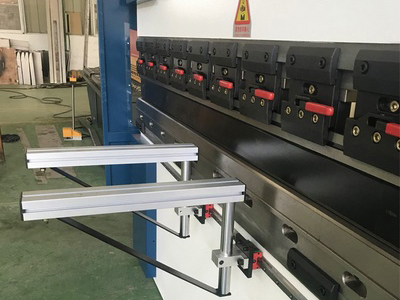

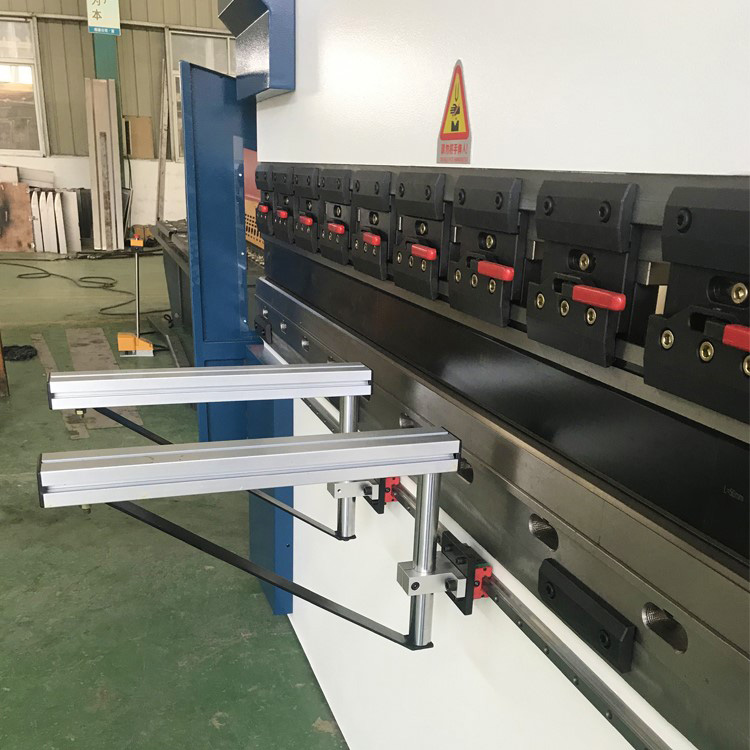

  • Front arms
    Front arms

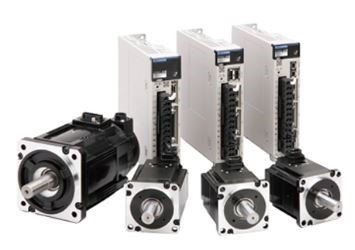

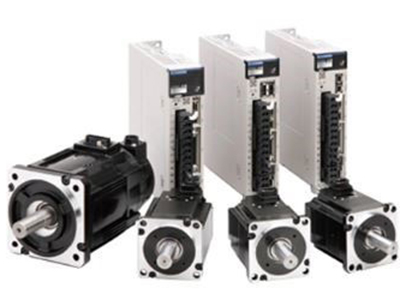

  • Servo motor
    Servo motor

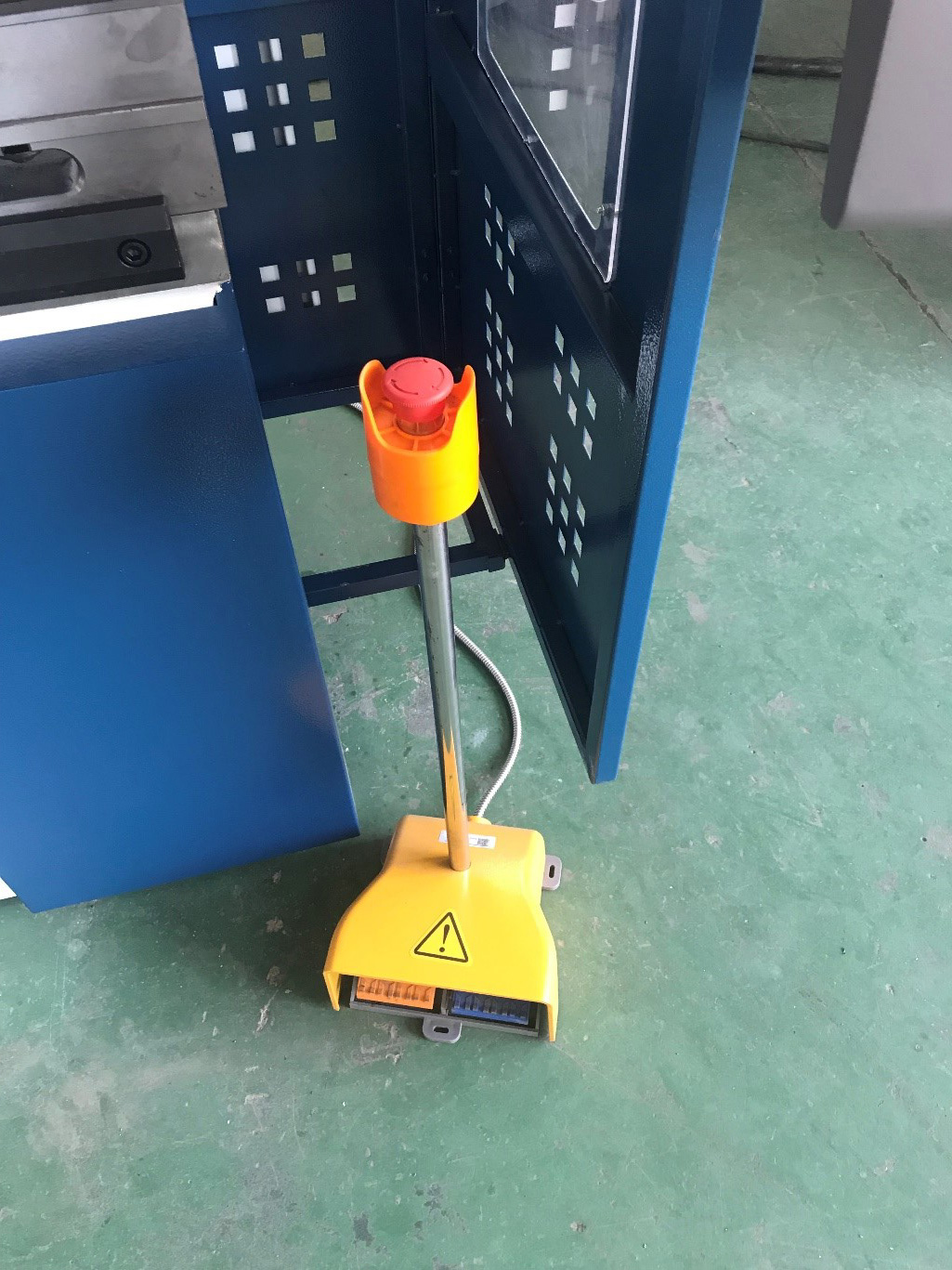

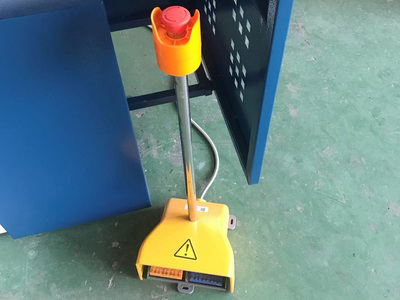

  • Foot switch
    Foot switch
Optional

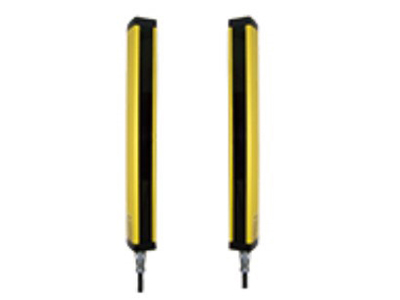

  • Safety light curtain
    Safety light curtain

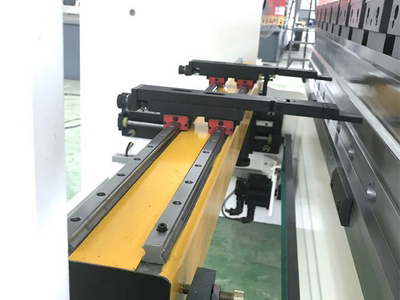

  • Dual guide rail crossbar
    Dual guide rail crossbar
  • Clamping system
    Clamping system

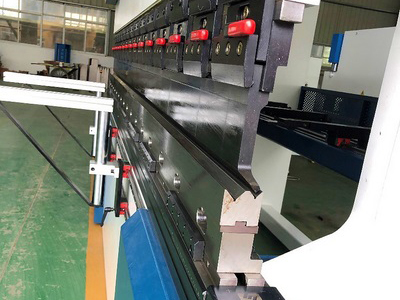

  • Sectional CNC tooling
    Sectional CNC tooling
