This metal shearing machine features a steel welded structure to eliminate internal stress in order to maintain an excellent rigidity and stability.
It uses an integrated hydraulic system to maintain its reliability.
The three-point-support rolling guide reduces cutting defects to improve cutting quality.
The blade gap is adjusted using the handwheel, which supports a quick and precise adjustment. Four blade edges are all available for cutting, ensuring high working efficiency.
The shear angle is adjustable to reduce sheet distortion.
The upper tool holder features an inward tilt structure, which is convenient for blanking, thus enhancing the cutting precision.
This machine carries out sectioned cutting and shadow cut lines for a better precision.
The back gauge is controlled by the CNC control system.
Rear supporting material positioning platform (optional)
Technical Parameters
Model
Cutting thickness (mm)
Cutting width (mm)
Throat depth (mm)
Back gauge range (mm)
Shear angle (。)
Strokes (min-1)
Motor power(KW)
Overall dimensions (mm)
6×2500
6
2500
80
500
0.5-1.3
14
7.5
3100×1725×1960
6×3200
6
3200
80
500
0.5-1.3
12
7.5
3650×1750×1980
6×4000
6
4000
80
500
0.5-1.3
10
7.5
4650×1780×2075
6×5000
6
5000
80
500
0.5-1.3
8
7.5
5650×183×2250
8×2500
8
2500
80
500
0.5-1.3
14
7.5
3100×1725×1960
8×3200
8
3200
80
500
0.5-1.3
12
7.5
3850×1750×1980
8×4000
8
4000
80
500
0.5-1.3
10
7.5
4650×1850×2075
8×5000
8
5000
80
500
0.5-2
7
15
5805×2000×2500
10×2500
10
2500
120
500
0.5-2.3
10
15
3195×1800×2210
10×3200
10
3200
120
500
0.5-2.3
8
15
3895×1800×2240
10×4000
10
4000
120
500
0.5-2.3
6
15
4695×1930×2275
10×5000
10
5000
120
500
0.5-2.3
5
15
5905×2115×2715
12×2500
12
2500
120
500
0.5-2.3
10
15
3195×1800×2210
12×3200
12
3200
120
500
0.5-2.3
8
15
3895×1800×2240
12×4000
12
4000
120
500
0.5-2.3
6
15
4710×1950×2485
12×5000
12
5000
120
500
0.5-2.3
5
18.5
5905×2115×2800
16×2500
16
2500
120
500
0.5-2.3
8
15
3215×1880×2340
16×3200
16
3200
120
500
0.5-2.3
7
15
3915×1880×2445
16×4000
16
4000
120
500
0.5-2.3
6
15
4715×1950×2590
16×5000
16
5000
120
500
0.5-3
5
22
6000×2300×3000
20×2500
20
2500
120
500
0.5-3
6
22
3215×1890×2465
20×3200
20
3200
120
500
0.5-3
5
30
4120×1890×2780
20×4000
20
4000
120
500
0.5-3
4
30
4925×2150×2900
Optional Control System

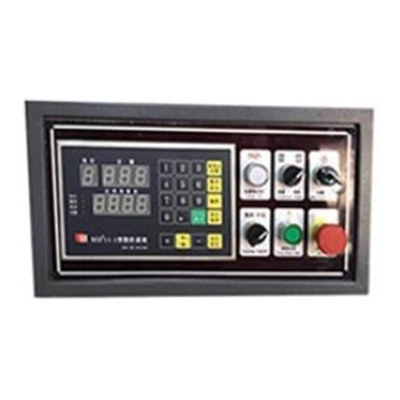

MD11-1 control system
Simple and easy operation
10-step programs
Manual changing and adjustment of the plates
Auto-retraction function
Parameter setting and modification

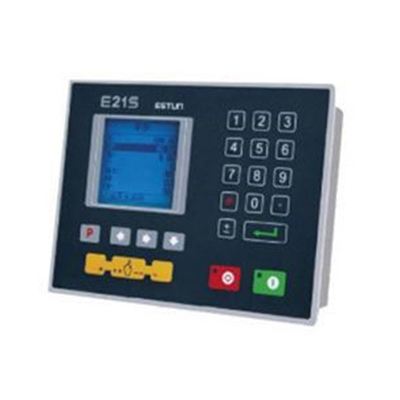

E21S control system
Back gauge control system
Automatic positioning
Dual programmable digital output
40 Programs stored, 25 steps per program
Back gauge retract function
One-click backup and restoration
mm/inch, English operation interface
Standard Configurations

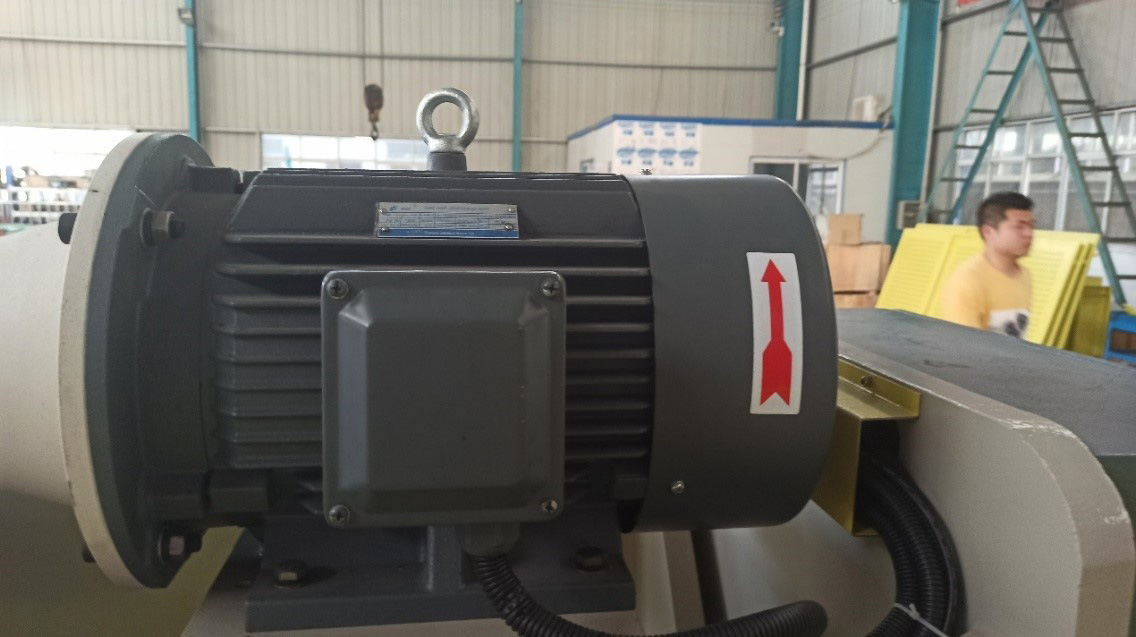

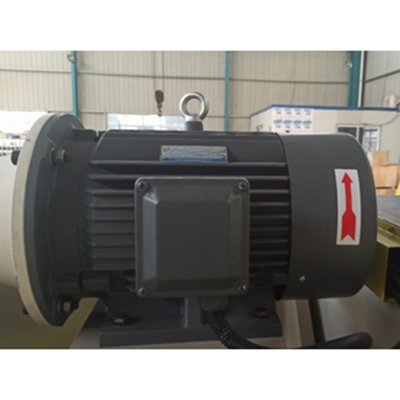

Main motor from Siemens

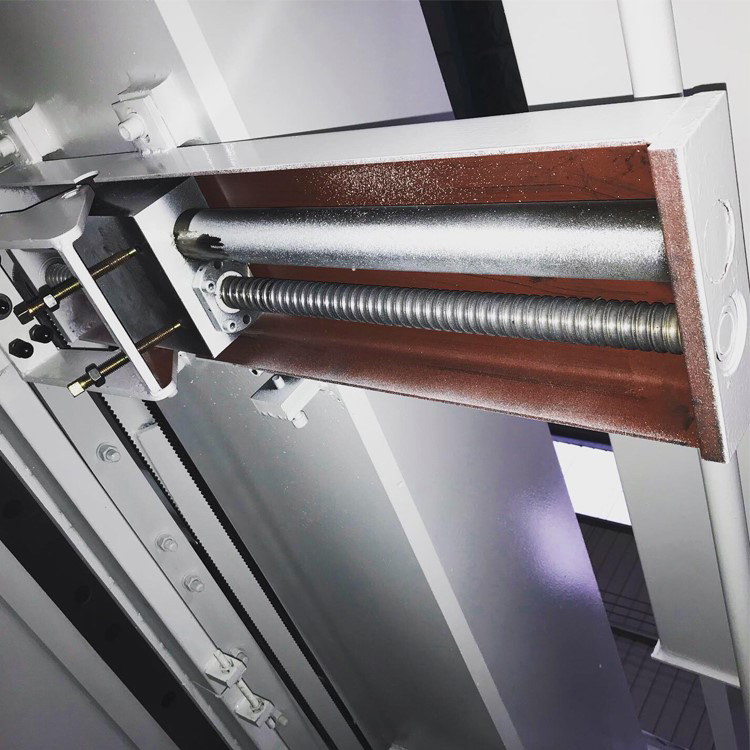

Ball screw and linear rail from Taiwan HIWIN

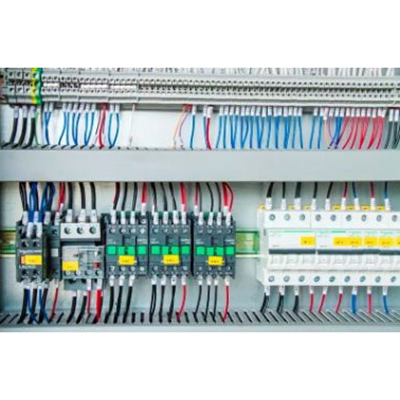

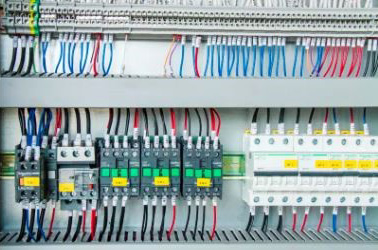

Electrical system from French SCHNEIDER

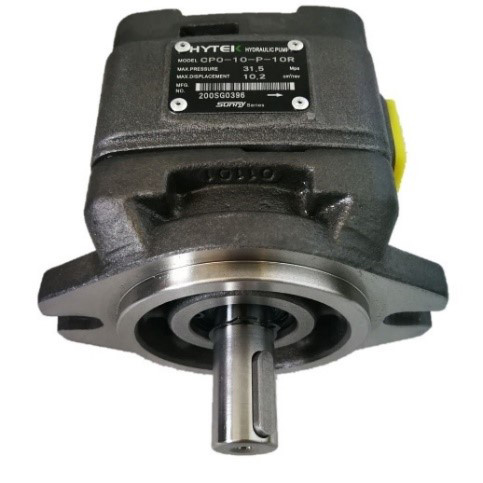

Oil pump from Sunny

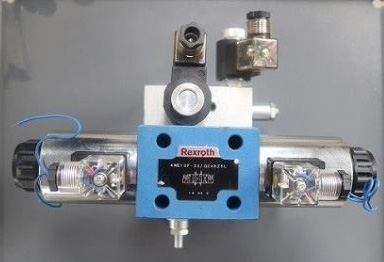

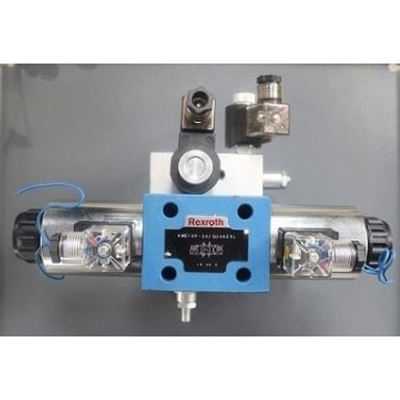

Manifold valve from REXROTH

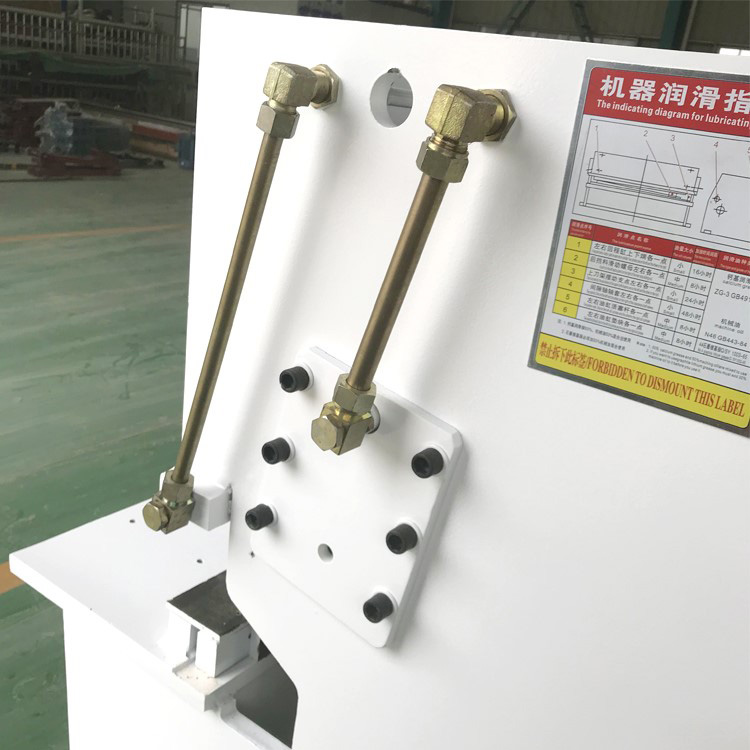

Tube fittings and tube adapters

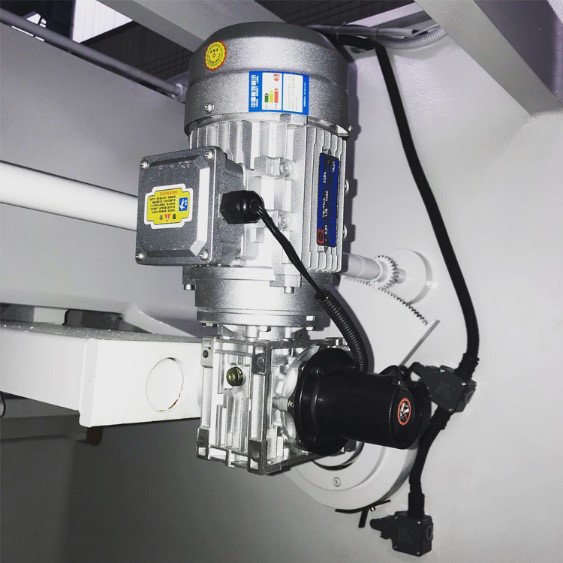

Motor

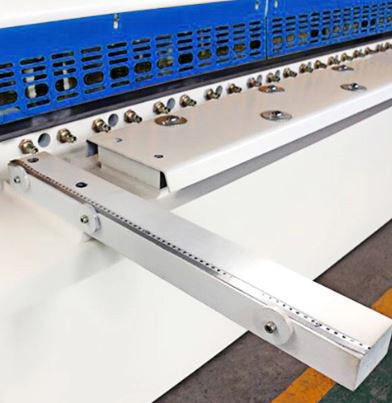

Front arms
Optional

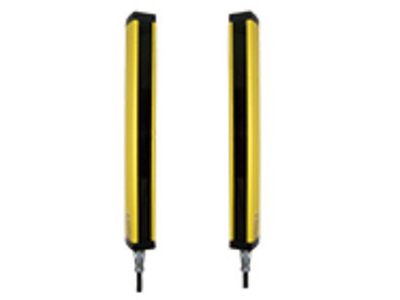

Light curtain protection

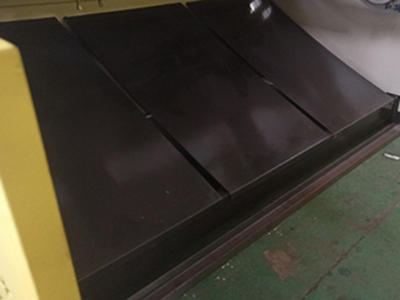

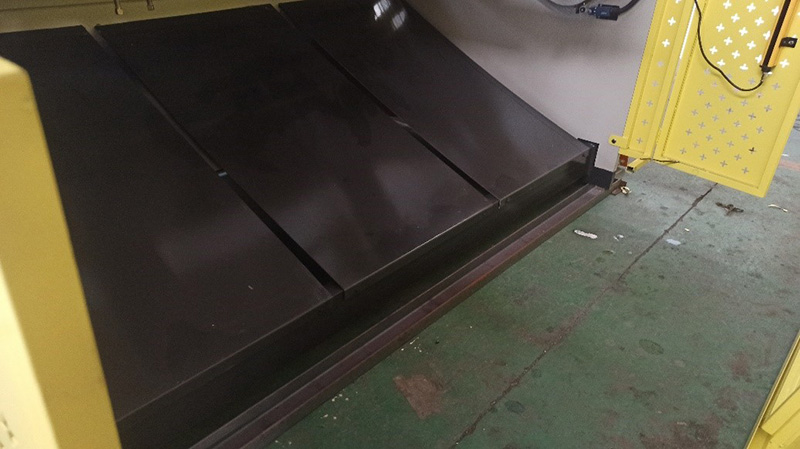

Rear supporting material positioning platform
