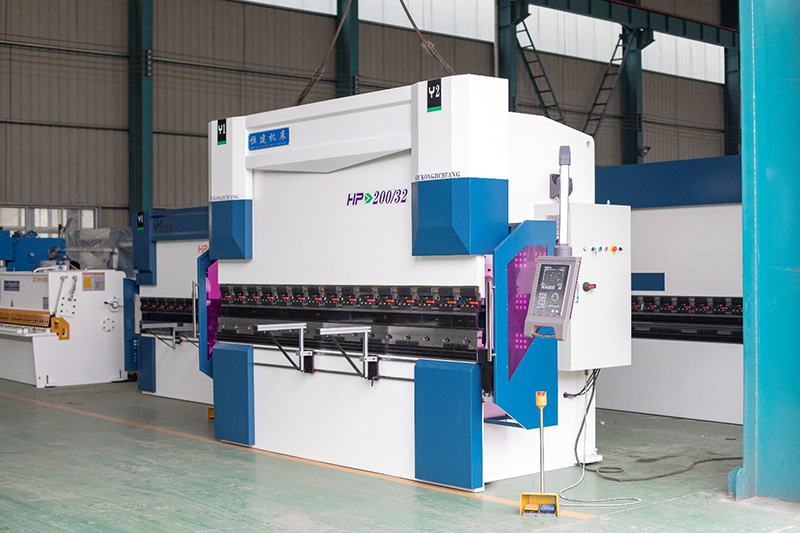

Press Brake, WE67K Series

Press Brake, WE67K Series
Inquiry
Features
  • This press brake features a fully welded structure with a high strength and rigidity. Main components use an ANSYS FEM (Finite Element Analysis) to ensure machine reliability and accuracy.
  • The main oil cylinders on both sides use a different control method than traditional bending machines do. This equipment uses a closed-loop control method comprised of an electro-hydraulic servo valve and grating ruler imported from Germany. The slide block features an excellent position feedback accuracy, supporting stable operation. The slide block bending angle and position are both recorded to ensure uniformity.
  • Functional parts in the back gauge are all imported to ensure the accuracy. We also use a multi-axis back gauge to improve the gauging precision according to customer needs.
  • The hydraulic system uses an integrated control system imported from Germany. It features a simple design, reducing the number of pipelines needed for operational stability.
  • High-precision grating scales are installed on the C frame on both sides, therefore preventing any influence on the bending accuracy caused by deformation.
  • The worktable supports hydraulic deflection compensation, allowing for an effective compensation for operational stability.
  • The numerical control systems on the electro-hydraulic bending machines are imported from Italian ESA, Dutch DEL EM or Swiss CYBELEC, allowing for a number of functions, including bending angle programming and auto-correction, bending pressure adjustment, back gauge retraction and more.
Technical Parameters
Nominal force KN 1000 2500
Table length mm 3200 3200
Distance between frames mm 2650 2670
Throat depth mm 340 360
Ram stroke mm 160 250
Stroke adjustment mm 40 100
Max. open height mm 450 480
Ram speed No load mm/s 60 60
Full load mm/s 8 12
Return mm/s 66 66
Main power Model Y132M-4 Y160M-4
Power KW 7.5 18.5
Speed r/min 1440 1440
Servo motor for back gauge Model HN160T-M050C3A-6 HN160T-M050C3A-6
Power KW 1 1
Speed r/min 2200 2200
Gear pump Model NT2-G16F NT2-G40F
Pressure Mpa 25 28
Flow rate ml/r 16 40
Outline dimensions Length mm 3200 3200
Width mm 1400 1800
Height mm 2500 2850
Max. working pressure Mpa 25 28
Optional Control System

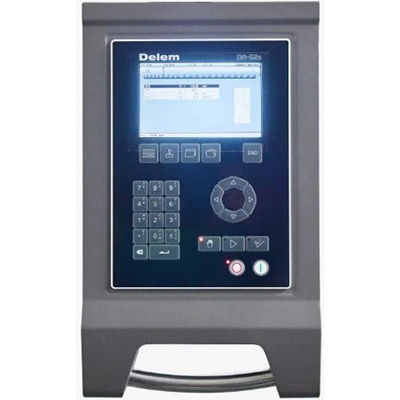

DA-52S control system
  • 6.4" LCD color display
  • Maximum 4-axis control
  • Quick programming
  • ” Hot key” navigation
  • Work table compensating winding control
  • Toolings/materials/products warehouse
  • 266MHz processor
  • 64MB memory
  • 30 upper dies and 30 lower dies
  • Diagnostic program
DA-52S control system

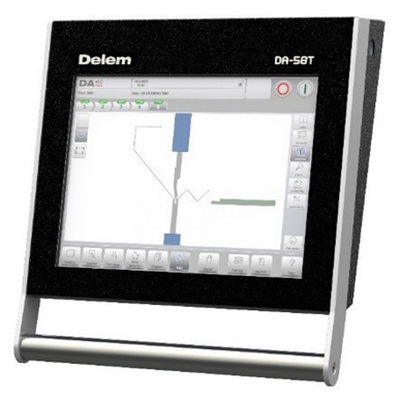

DA-58T control system
  • Built-in PLC(Programmable Logic Controller) function
  • 2D graphical touch screen programming mode
  • 15" high resolution TFT color display
  • Counting system of bending process
  • Deflection compensation
  • Servo and inverter control
  • Y-axis controlling program
  • Open loop, closed loop compound control algorithm
  • USB interface
  • Profile-58TL offline programming software
DA-52S control system

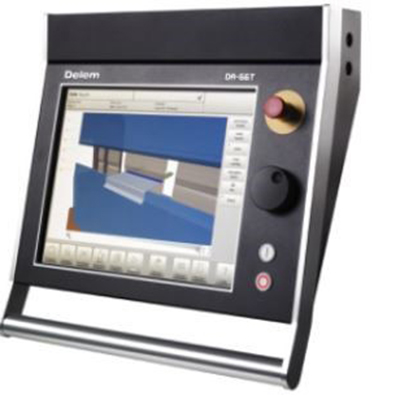

DA-66T control system
  • 2D graphical touch screen programming mode
  • 3D graphics display
  • 17" high resolution TFT color display
  • CNC control with Microsoft Windows
  • USB external interface
  • Multitask operating system
  • Angle positioning sensor
DA-66T control system
Standard Configurations

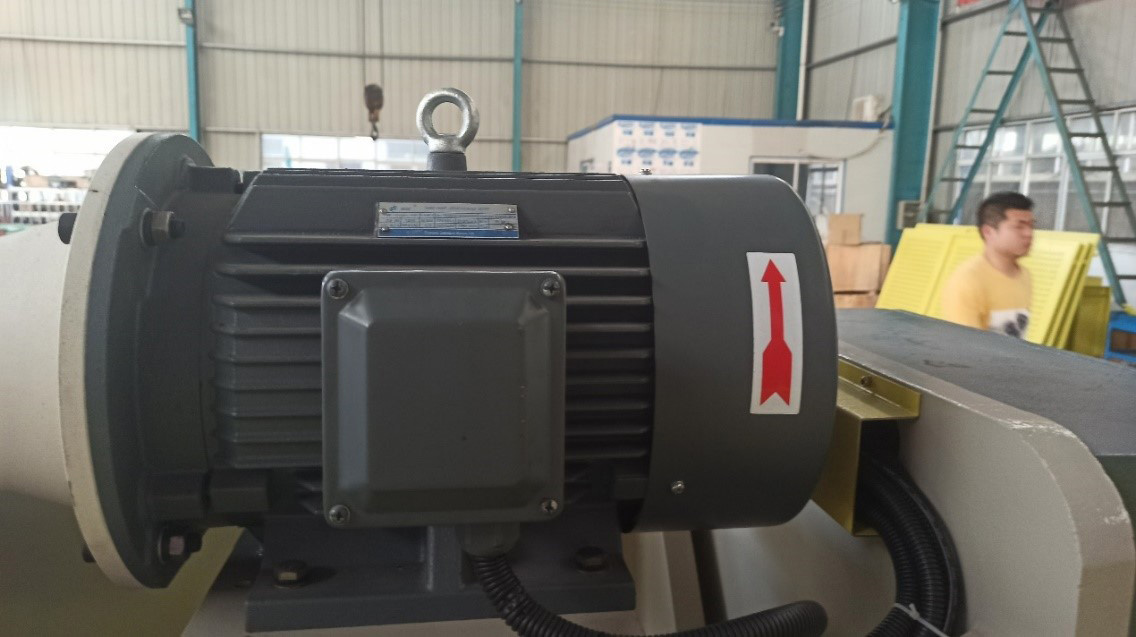

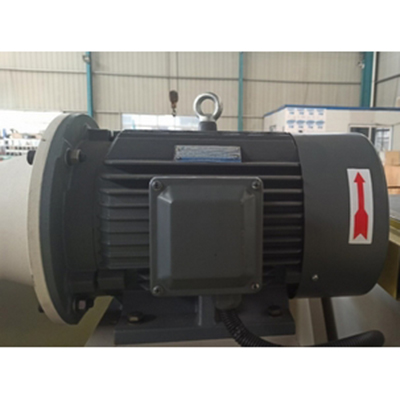

  • Main motor from Siemens
    Main motor from Siemens

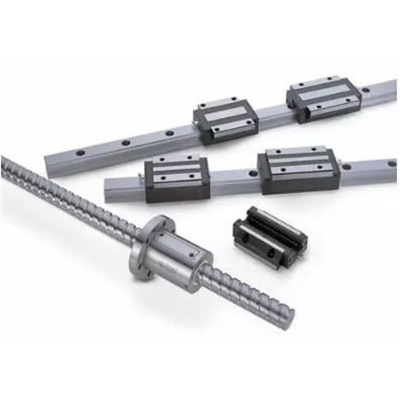

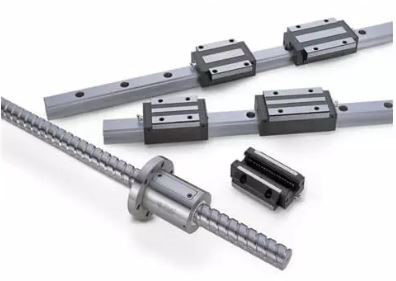

  • Ball screw and linear rail from Taiwan HIWIN
    Ball screw and linear rail from Taiwan HIWIN

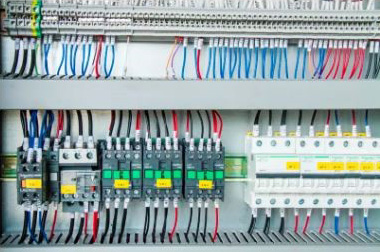

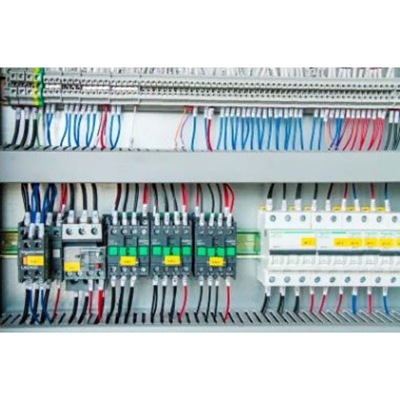

  • Electrical system from French SCHNEIDER
    Electrical system from French SCHNEIDER

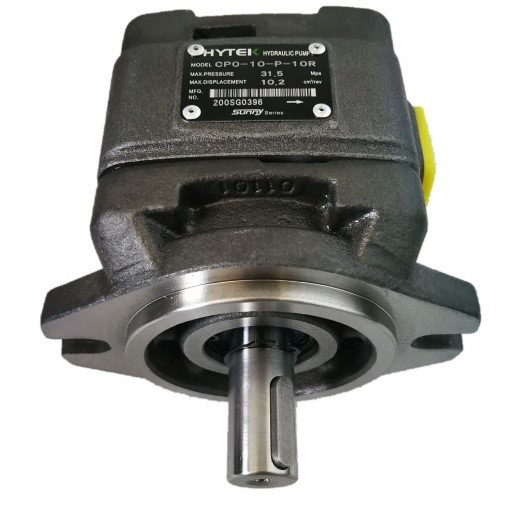

  • Oil pump from Sunny
    Oil pump from Sunny

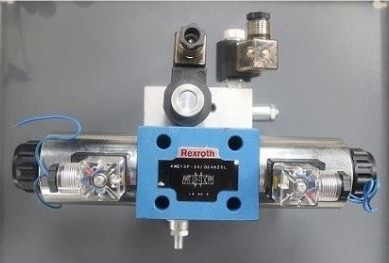

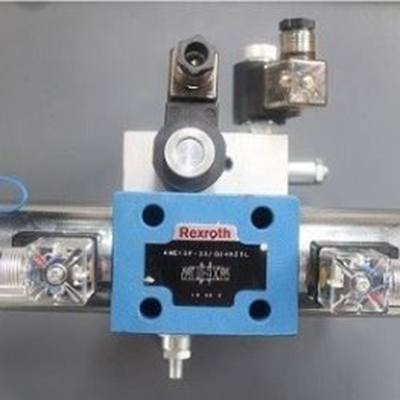

  • Manifold valve from REXROTH
    Manifold valve from REXROTH

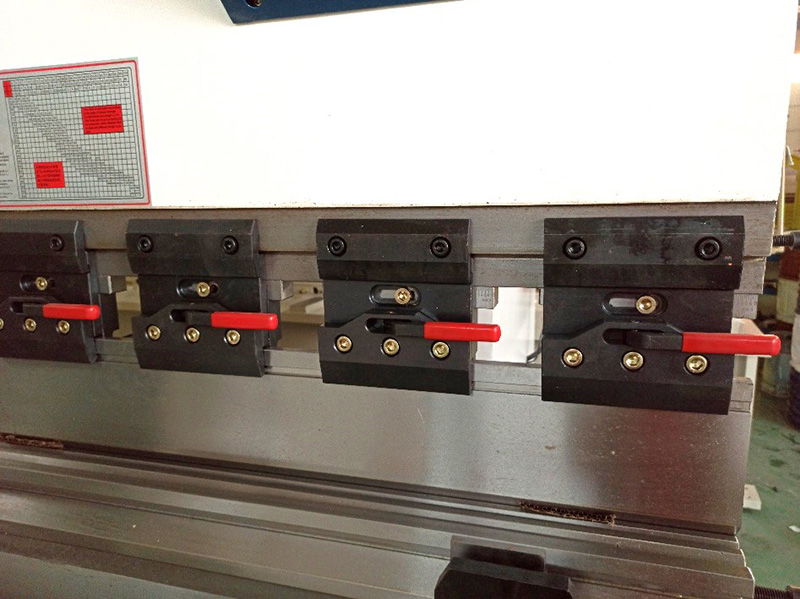

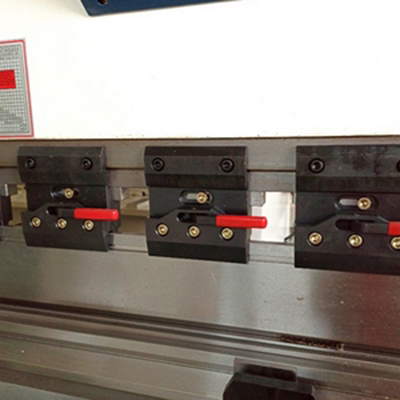

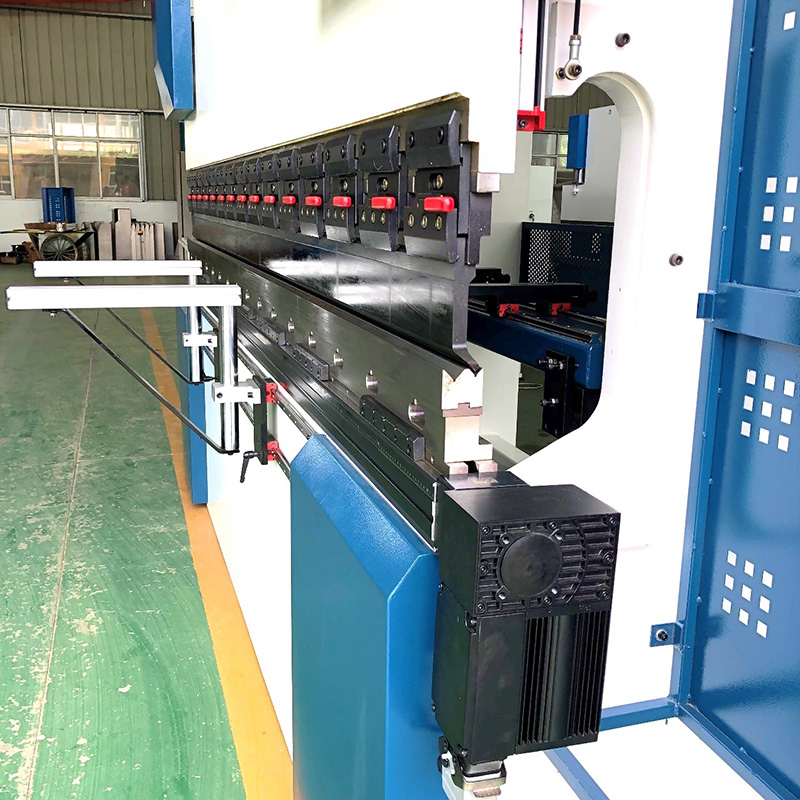

  • Clamping system
    Clamping system
  • Sectioned CNC tooling
    Sectioned CNC tooling

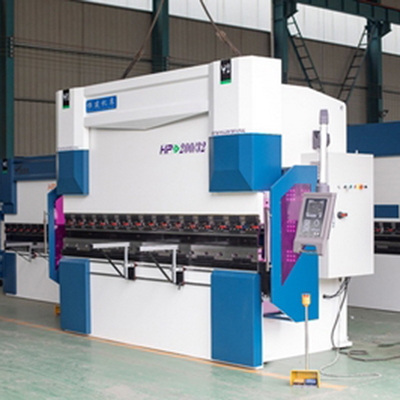

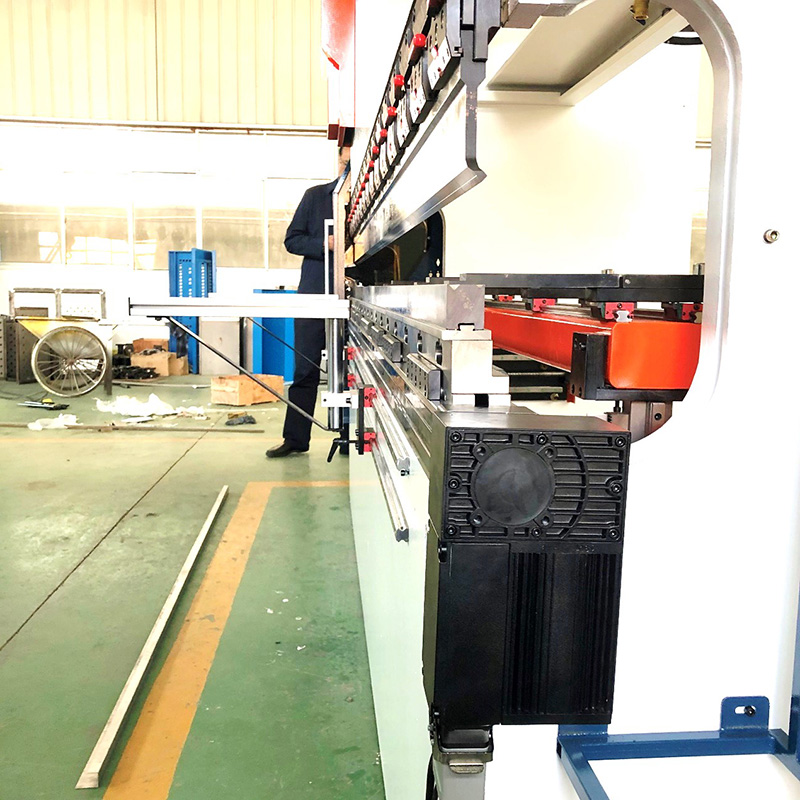

  • Front arms
    Front arms

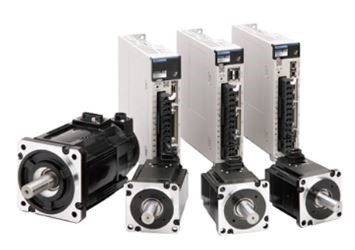

  • Servo motor
    Servo motor

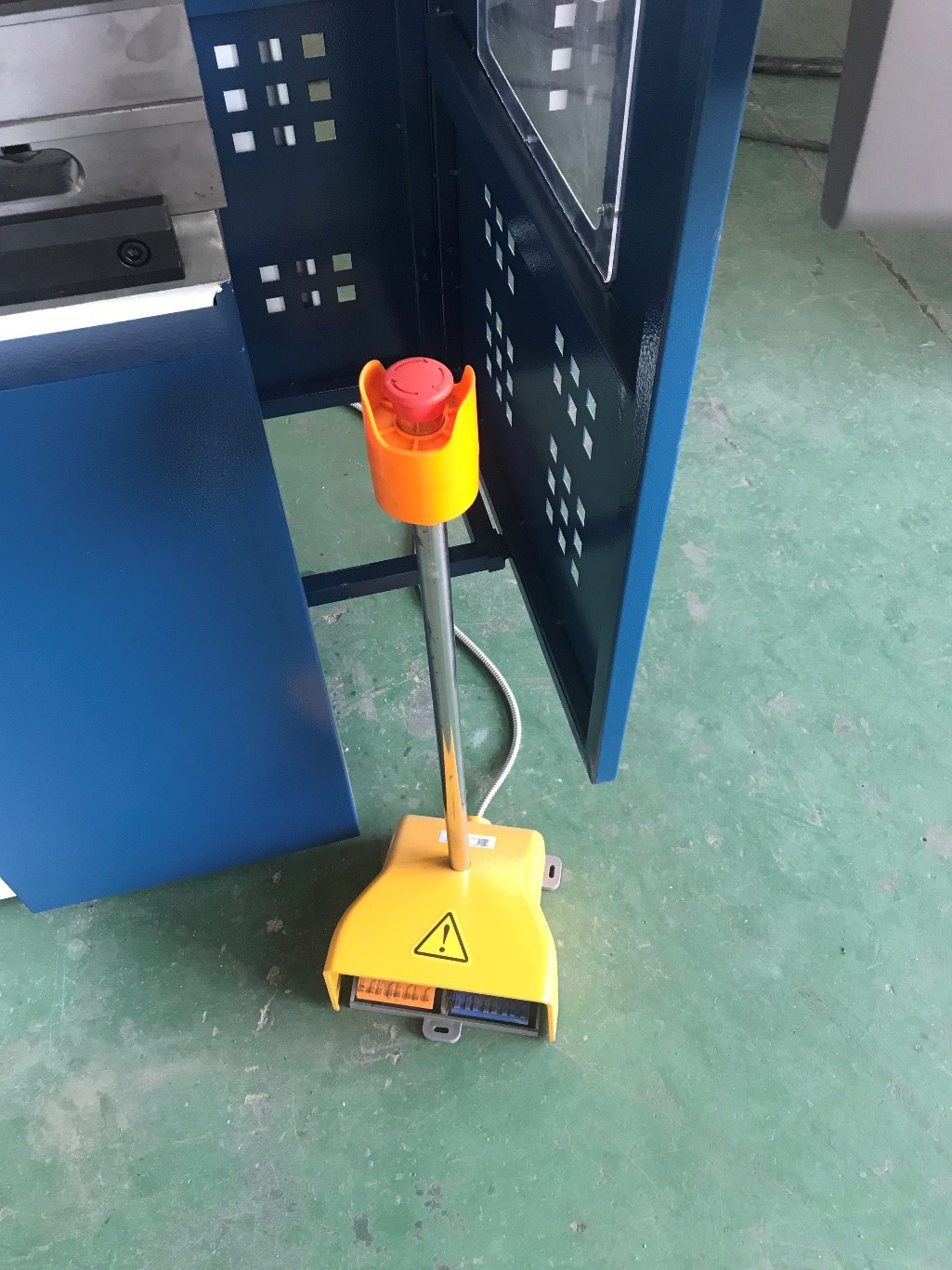

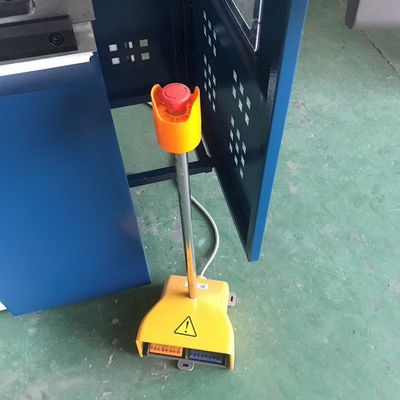

  • Foot switch
    Foot switch

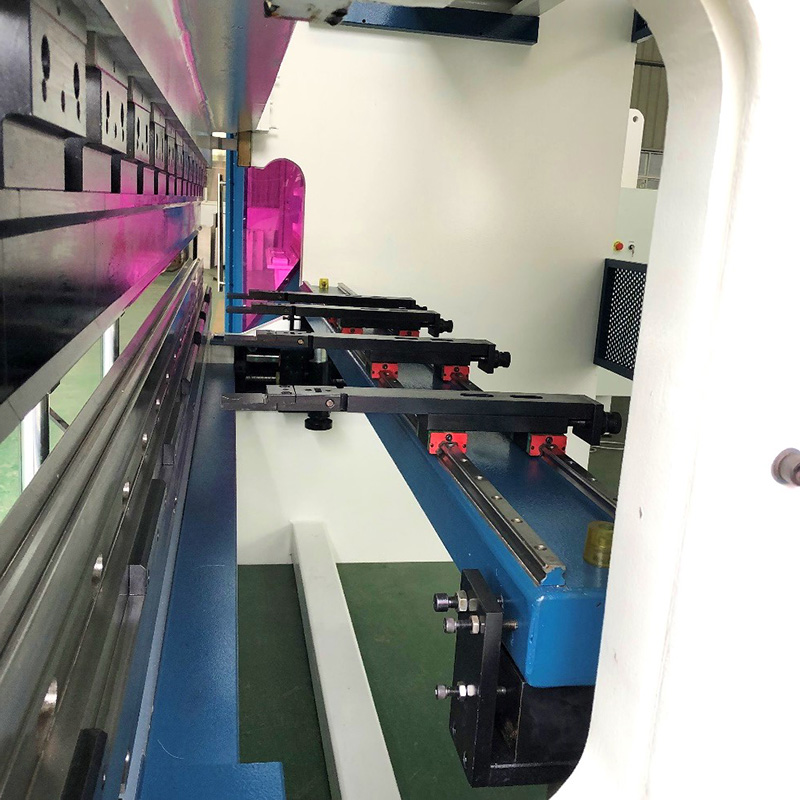

  • Dual guide rails back gauge crossbar
    Dual guide rails back gauge crossbar

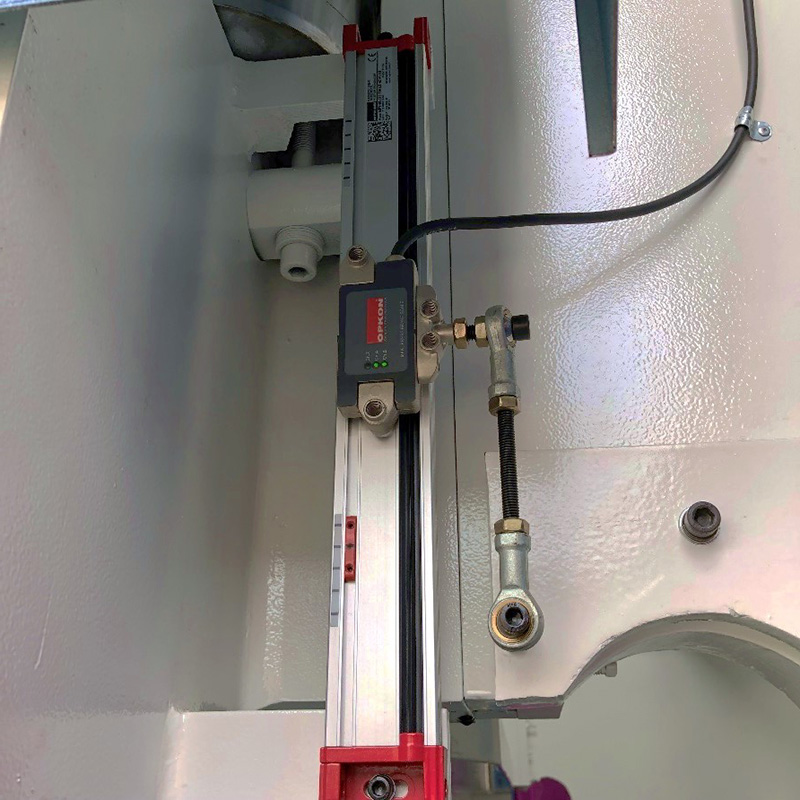

  • Grating ruler
    Grating ruler
  • Mechanical compensation
    Mechanical compensation
Optional

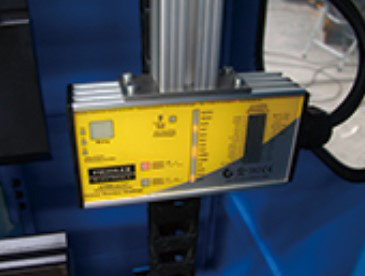

  • Light curtain protection
    Light curtain protection

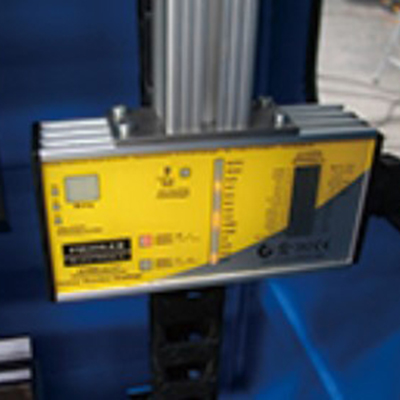

  • Laser protection
    Laser protection

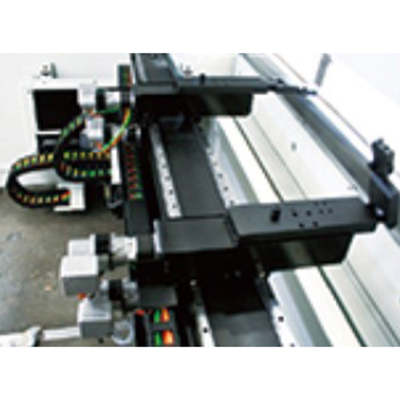

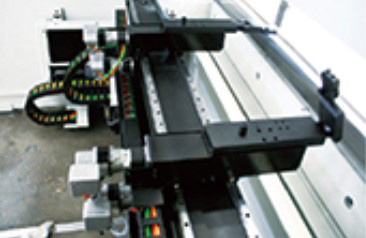

  • Multi-axis back gauge control mechanism
    Multi-axis back gauge control mechanism

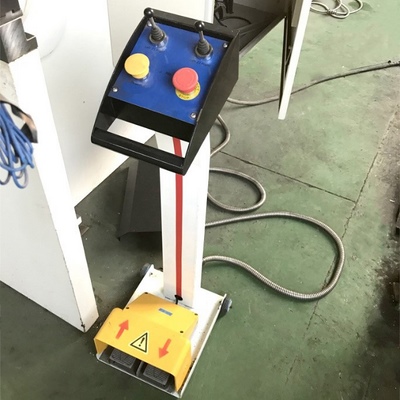

  • Multi-function foot switch
    Multi-function foot switch

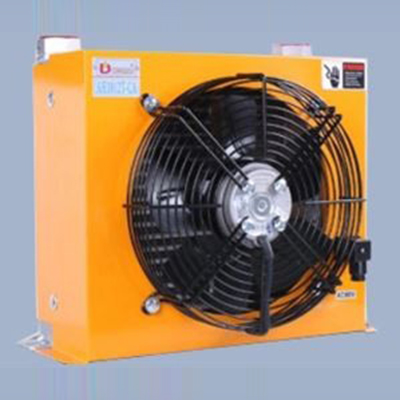

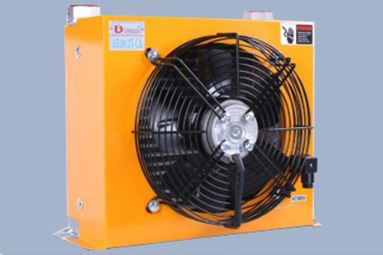

  • Cooling fan
    Cooling fan
