This metal cutting shear features a welded-steel structure with a simple design. It is outfitted with a digital CNC controller with a high precision to control the shearing process.
With hydraulic transmission and accumulator return function, this cutting shear features an easy operation and excellent reliability.

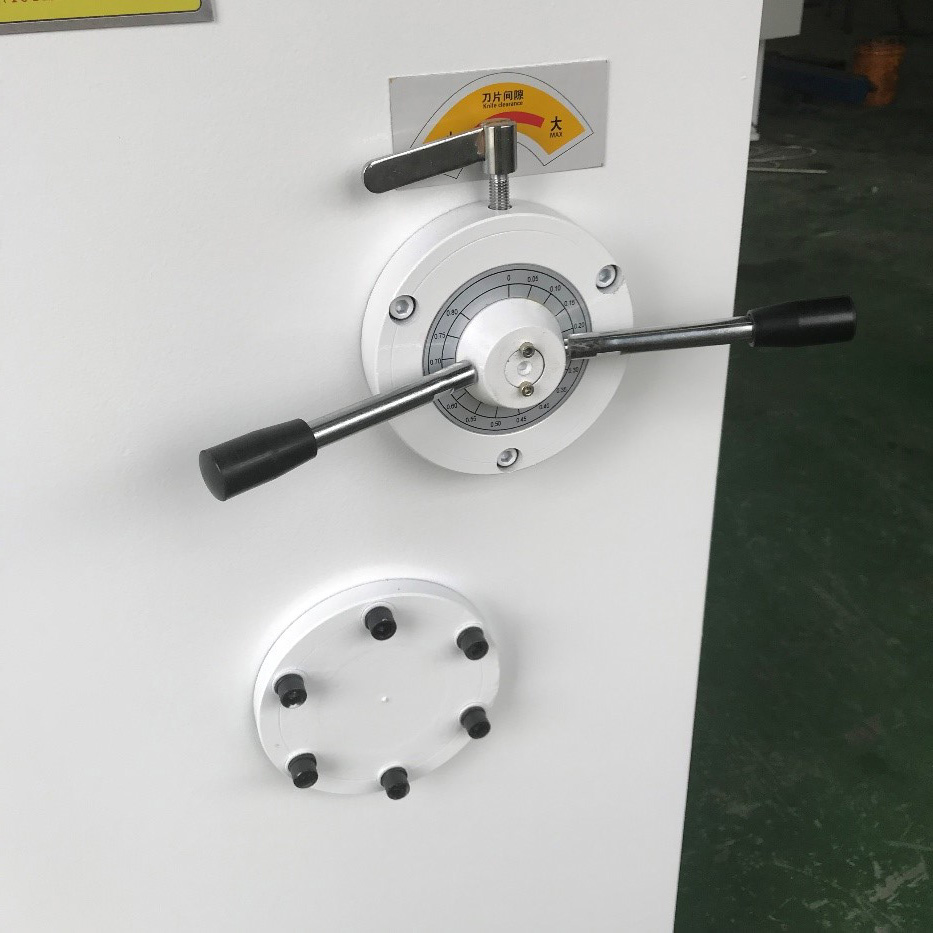

The blade gap adjustment device contains a sign indication for quick and easy setting.
With a shadow cut line and shear stroke controlling system, the bending adjustment is fast and easy.

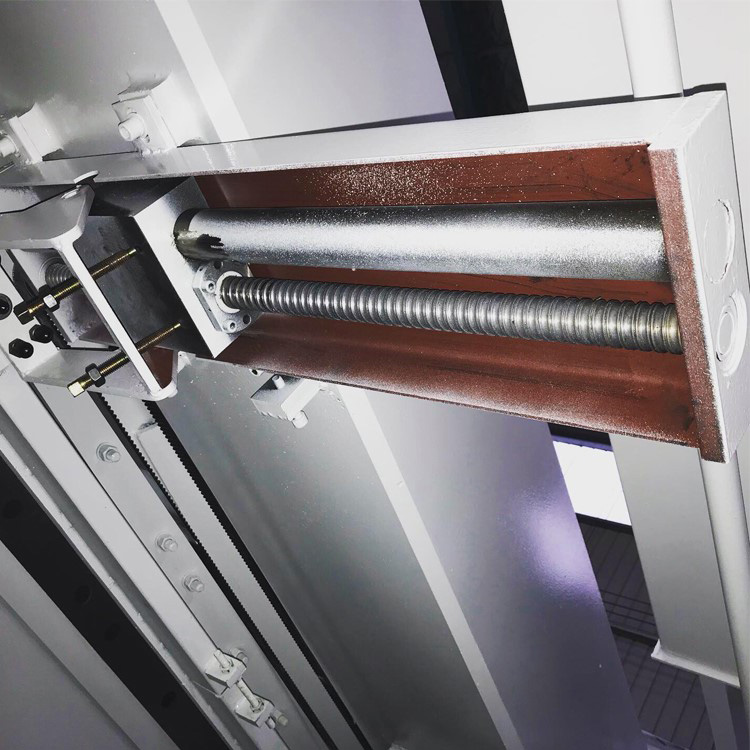

The work table is equipped with a ball screw to reduce sheet scratches and friction resistance.
Technical Parameters
Model
Cutting thickness
Cutting width
Shear angle
Shear strength
Back gauge range
Strokes
Motor power
Overall dimensions
(mm)
(mm)
°
(n/mm2 )
(mm)
/min
(kw)
LXWXH (nun)
QC12Y-4X2500
4
2500
1°30′
450
20-600
16
5.5
3000X1450X1750
QC12Y-4X3200
4
3200
1°30′
450
20-600
13
5.5
3700X1550X1850
QC12Y-4X4000
4
4000
1°30′
450
20-600
10
5.5
4500X1550X1850
QC12Y-4X6000
4
6000
1°30′
450
20-600
5
7.5
6400X2000X1900
QC12Y-6X2500
6
2500
1°30′
450
20-600
15
7.5
3000X1550X1850
QC12Y-6X3200
6
3200
1°30′
450
20-600
12
7.5
3700X1650X1850
QC12Y-6X4000
6
4000
1°30′
450
20-600
9
7.5
4500X1650X1850
QC12Y-6X6000
6
6000
1°30′
450
20-600
5
11
6400X2100X1900
QC12Y-8X2500
8
2500
1°45′
450
20-600
11
11
3000X1600X1850
QC12Y-8X3200
8
3200
1°45′
450
20-600
8
11
3700X1700X1900
QC12Y-8X4000
8
4000
1°45′
450
20-600
8
11
4500X1700X1900
QC12Y-8Xe000
8
6000
1°45′
450
20-600
8
11
6400X2200X2100
QC12Y-10X2500
10
2500
1°45′
450
20-600
10
11
3000X1600X1850
QC12Y-10X3200
10
3200
1°45′
450
20-600
10
11
3700X1700X1900
QC12Y-10X4000
10
4000
1°45′
450
20-600
10
11
4500X1700X1900
QC12Y-10X6000
10
6000
1°45′
450
20-600
10
15
6400X2200X2100
Optional Control System

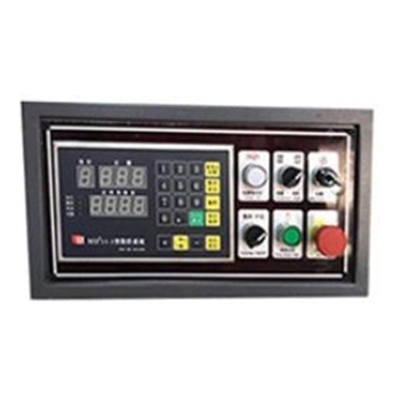

MD11-1 control system
Easy operation and low cost
10-step program
Manual changing and adjustment of the plates
Retract function
Parameter setting and modification

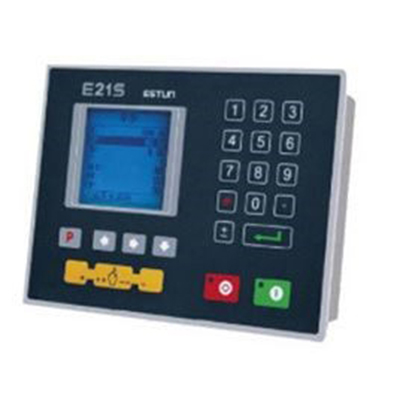

E21S control system
Back gauge control system
Automatic positioning
Dual programmable digital output
40 programs stored, 25 steps per program
Back gauge retract function
One-click backup and restoration
mm/inch, English operation interface
Standard Configurations

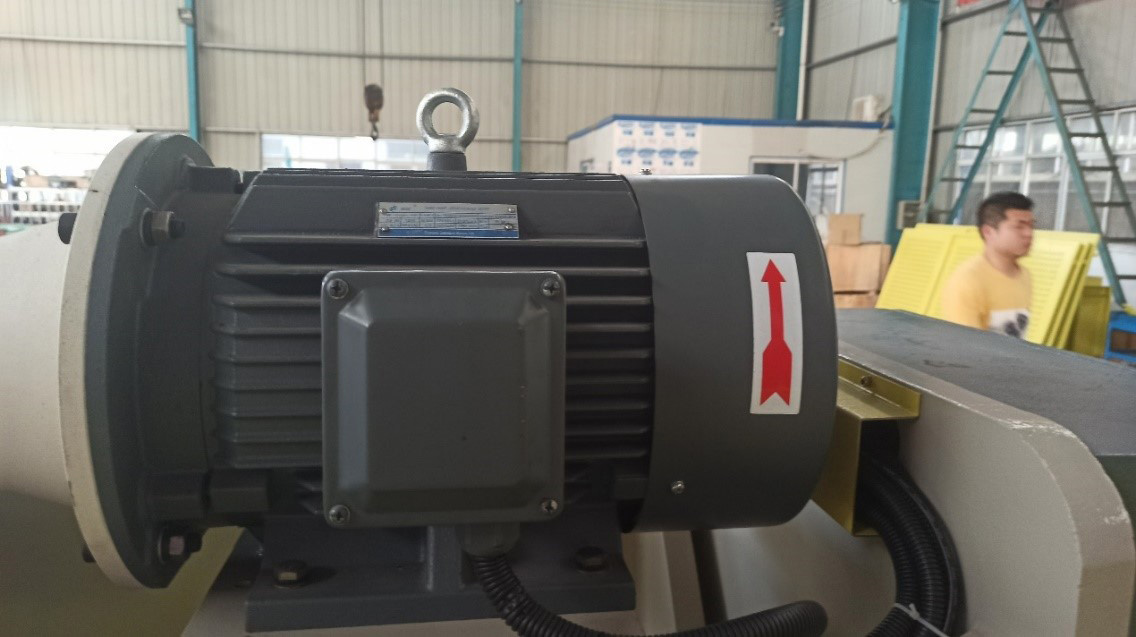

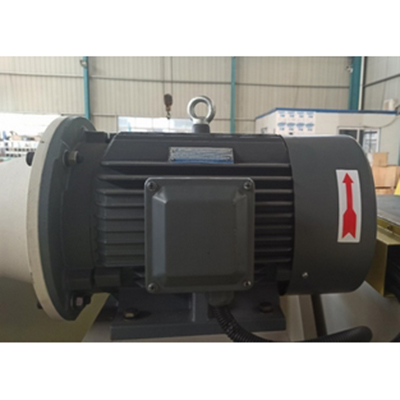

Main motor from Siemens
Ball screw and linear rail from Taiwan HIWIN

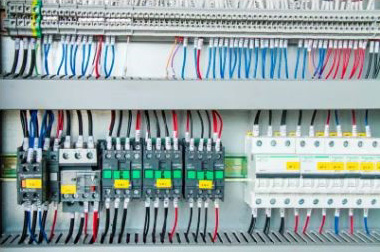

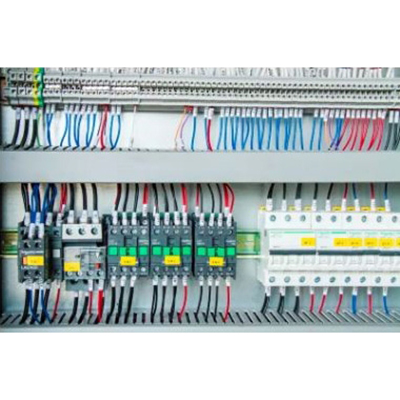

Electrical system from French SCHNEIDER

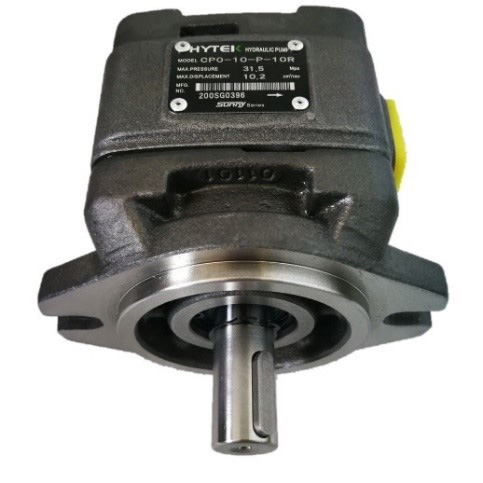

Oil pump from Sunny

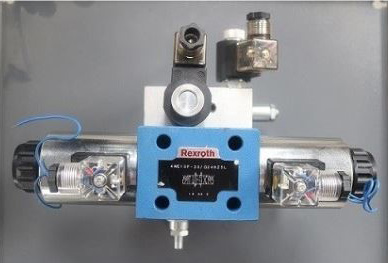

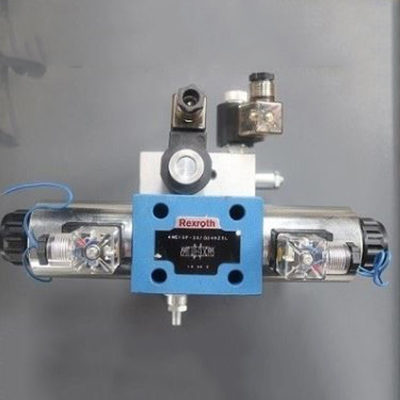

Manifold valve from REXROTH

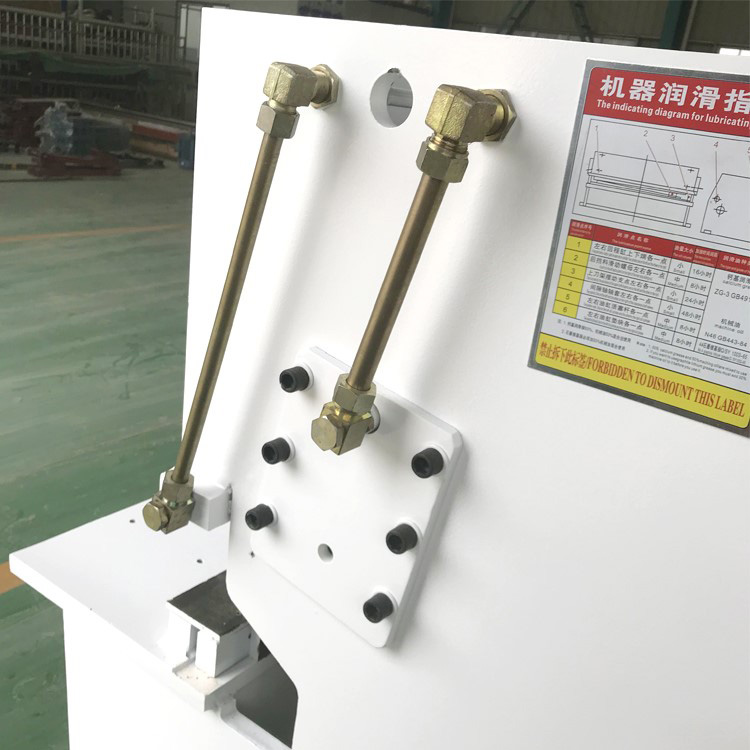

Tube fittings and tube adapters

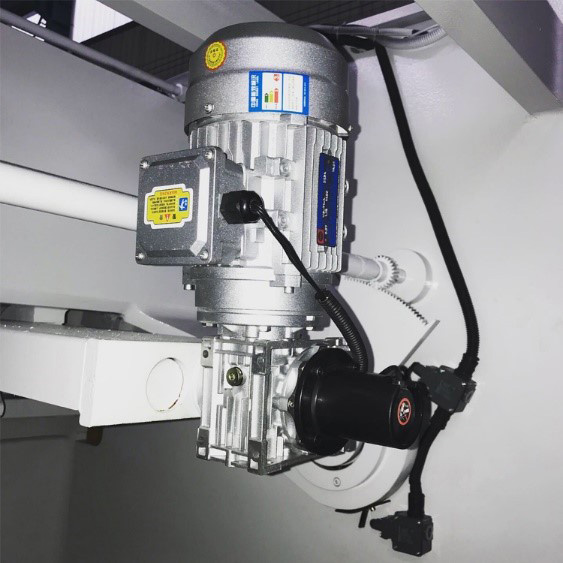

Motor

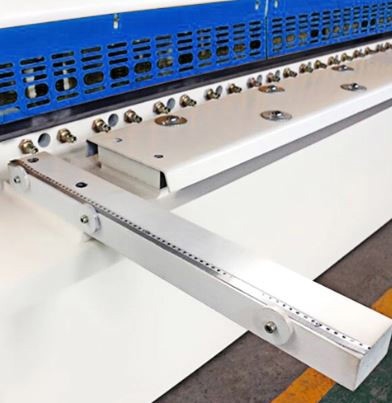

Front arms
Manual blade gap adjustment
Optional

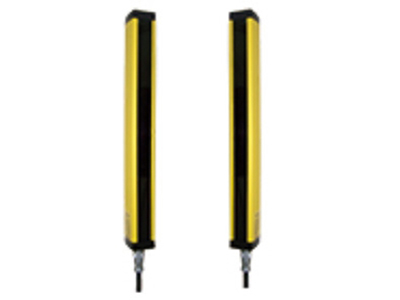

Light curtain protection

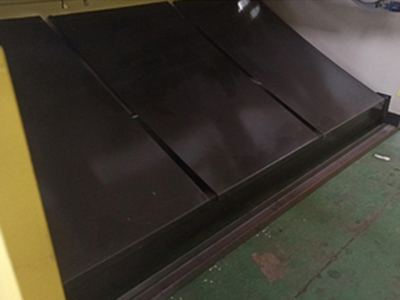

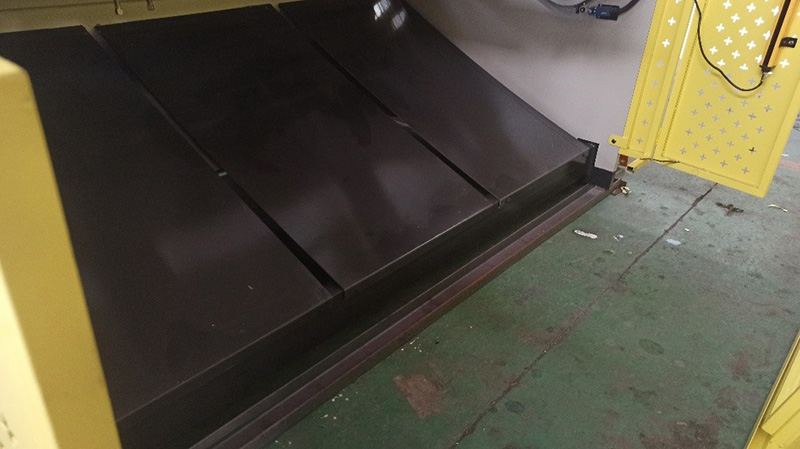

Rear supporting material positioning platform
